DC POWER SUPPLY
Features:

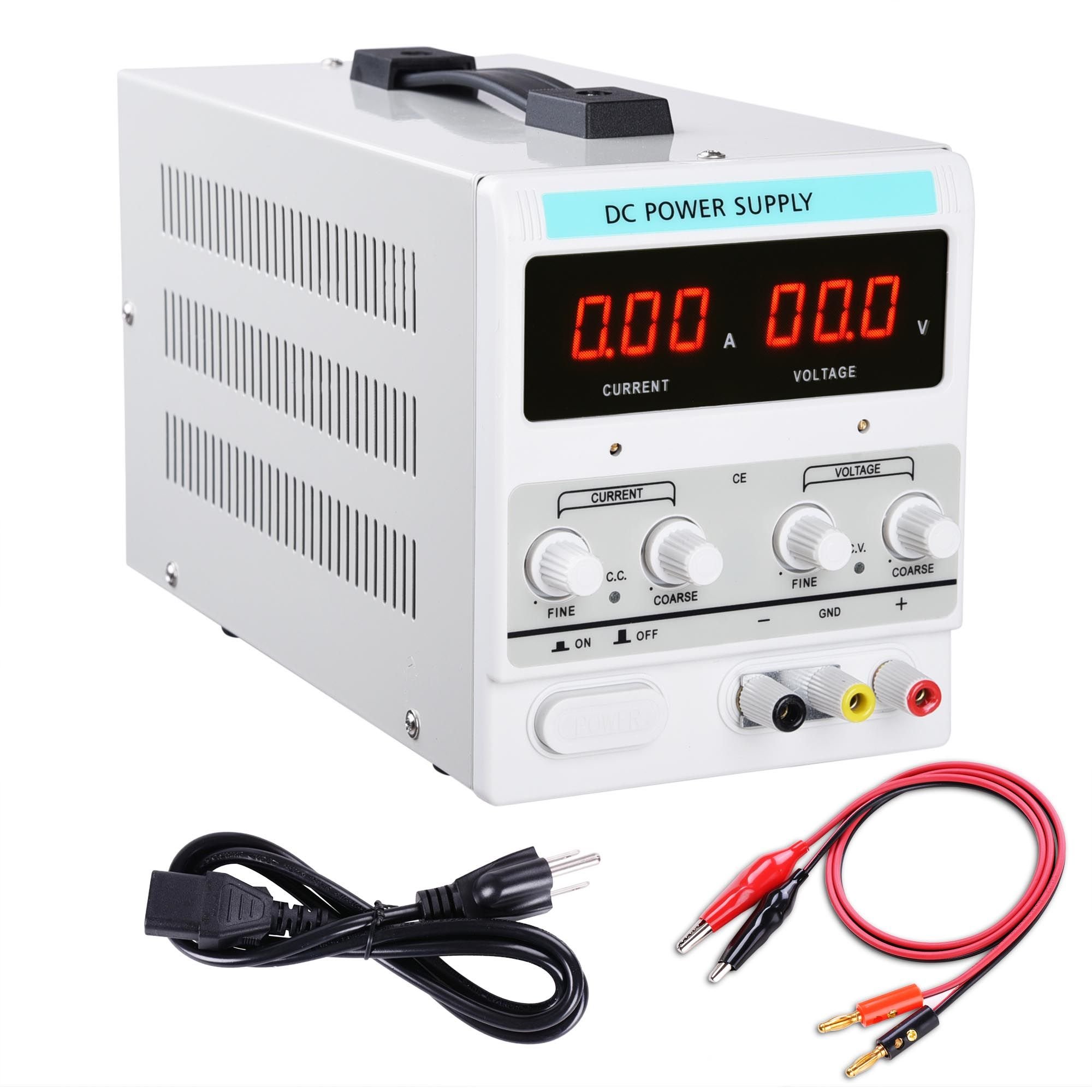

Dual LED Three Digital Tube Display
Constant voltage and constant current operation mode (C.C and C.V. automatic conversion)
Multiple protections: over voltage (OVP), open circuit (OCP),over temperature (OTP)
Safe circuit design, high quality key components adopted, the power supply can be used in 24 hours with full load

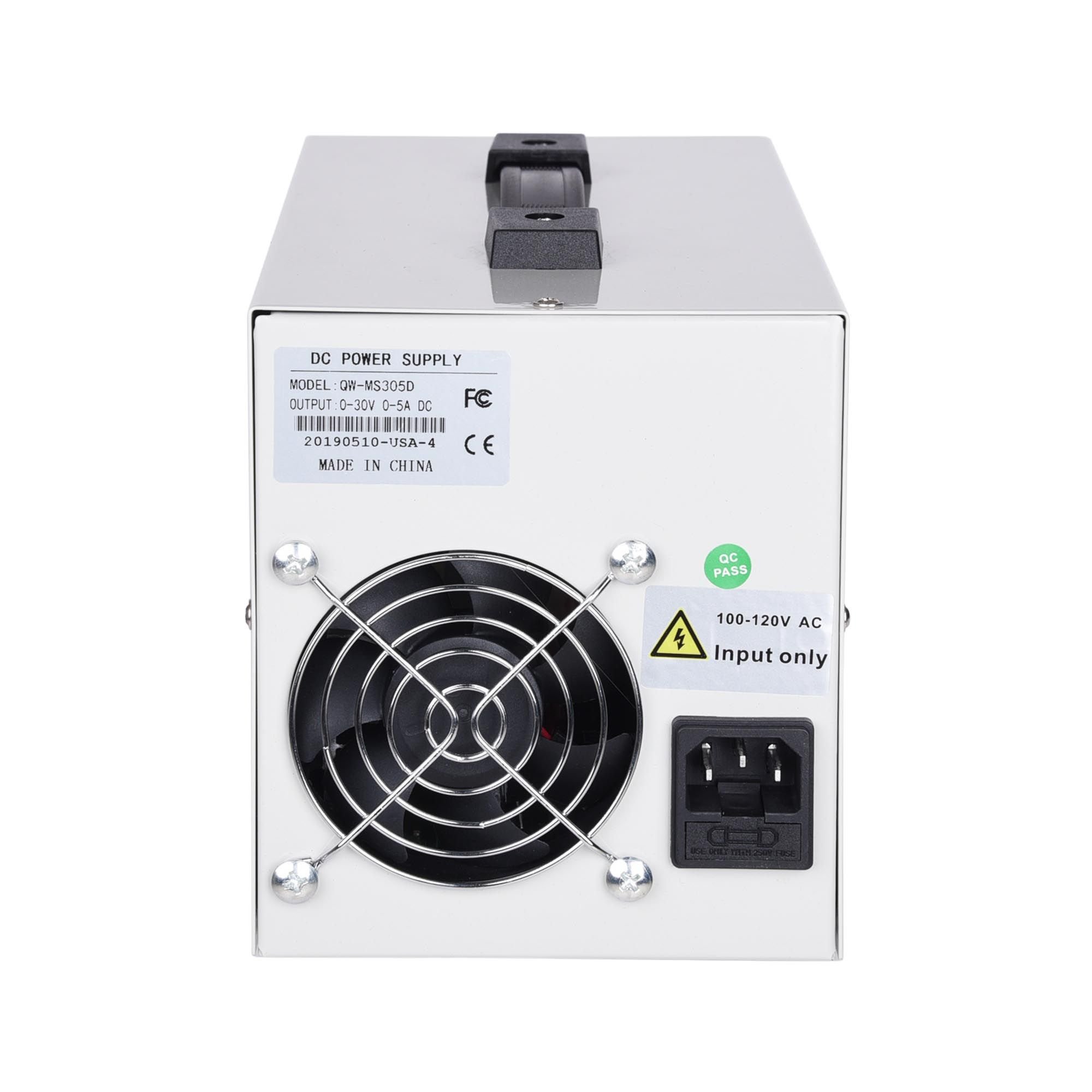

Intelligent temperature control fan adjusts the speed according to the load situation, effectively reduce noise and prolong the life of fan
PWM switching voltage stabilizer, MOS linear adjustment mode

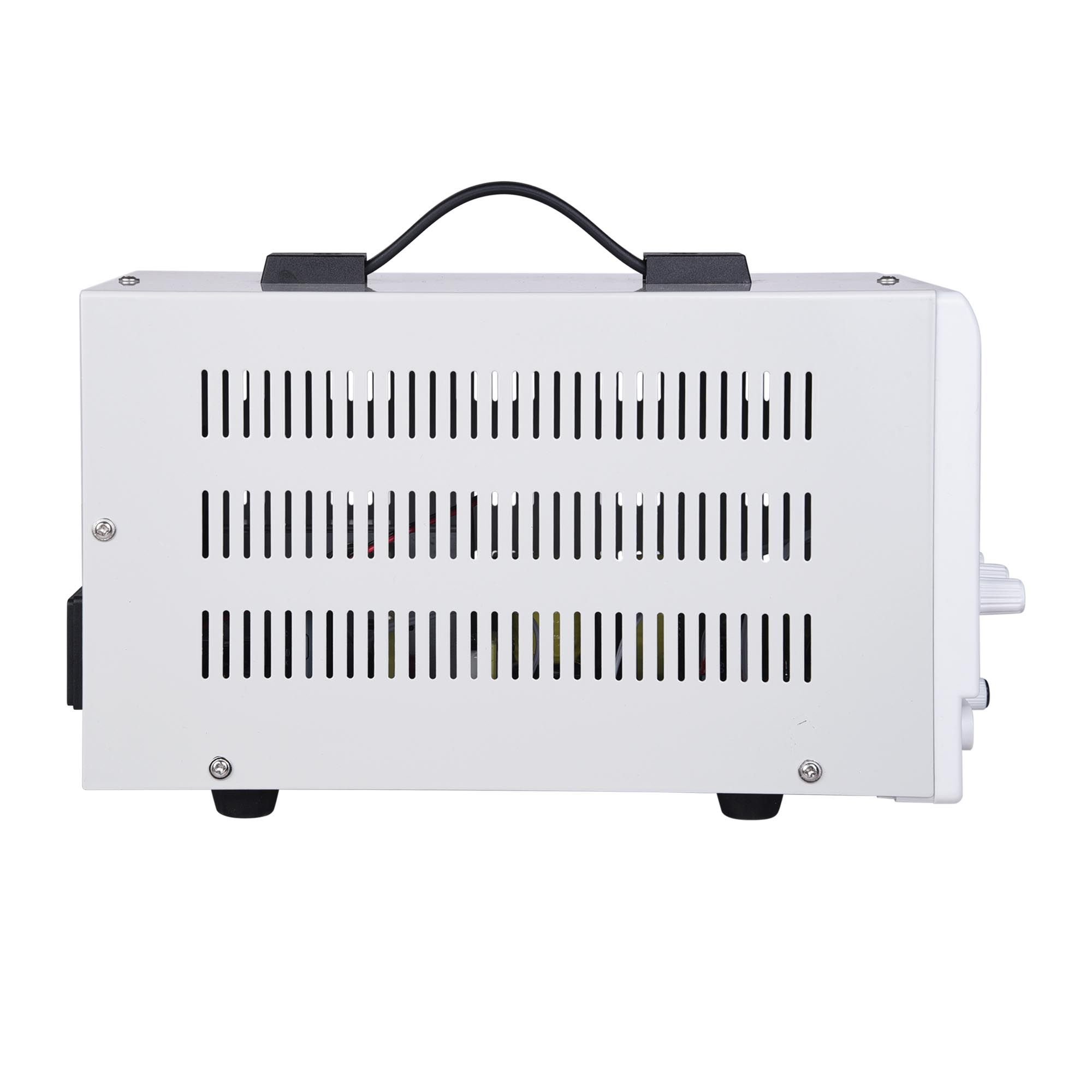

Durable steel case
Perfect for product testing aging, battery industry, inverter, LED manufacturing industry, and other all need dc regulated power supply
Specifications:
Input voltage: 110V AC,±10% 60Hz
Output voltage: DC 0-30V Continuous adjustable
Output current: DC 0-10A Continuous adjustable
Display resolution: voltage: 0.1V, current: 0.1A
Display precision: ±1% ±1digit
Voltage stabilization: ≤0.05% +1mV; Current stabilization: ≤0.1% +10mA
Load stabilization: CV≤0.1% +1mV / CC≤0.1% +10mA
Ripples and noises: CV≤10mV(RMS) / CC≤20mA(RMS)
Working Temperature: -10℃ ~ 40℃ (14℉~104℉) Relative Humidity:80%;Storage Conditions: -20℃ ~ 80℃ (-4℉~176℉) Relative humidity :80%
Body Dimension(LxWxH): 10 1/4" x 5" x 5 7/8" (26x12.6x14.8cm)
Package Contents:
1 x DC power supply
1x Power Cord
1x Cable
1x User Manual
